HJE24A-100A Compliant with UC3 Dual Channel Large Current Latching Relay

Three core advantages:

Dual-channel powerful output: Two independent 100A high-current channels, capable of synchronous or time-sharing control, offering flexible and efficient system configuration.

Stringent safety standards: Meets UC3 reinforced insulation standards, providing stronger withstand voltage and arc resistance, ensuring equipment and personnel safety.

High-efficiency and energy-saving operation: The magnetic latching structure achieves zero static power consumption, reducing overall system energy consumption and temperature rise.

Typical application scenarios:

Dual-channel charge and discharge management in commercial and industrial energy storage systems

Power distribution in dual-gun high-power charging piles

Dual redundant power supply switching in industrial control cabinets

Multi-output control of photovoltaic inverters

• Two-phase, two sets of contact with 100A switching capability
• Veryminimal power consumption from the coil
• Loadlead-out mode: 1 input 2 output, 3 input 4 output
• 4KVdielectrics strength coil to contact
• IEC-62055-31UC3 compliant

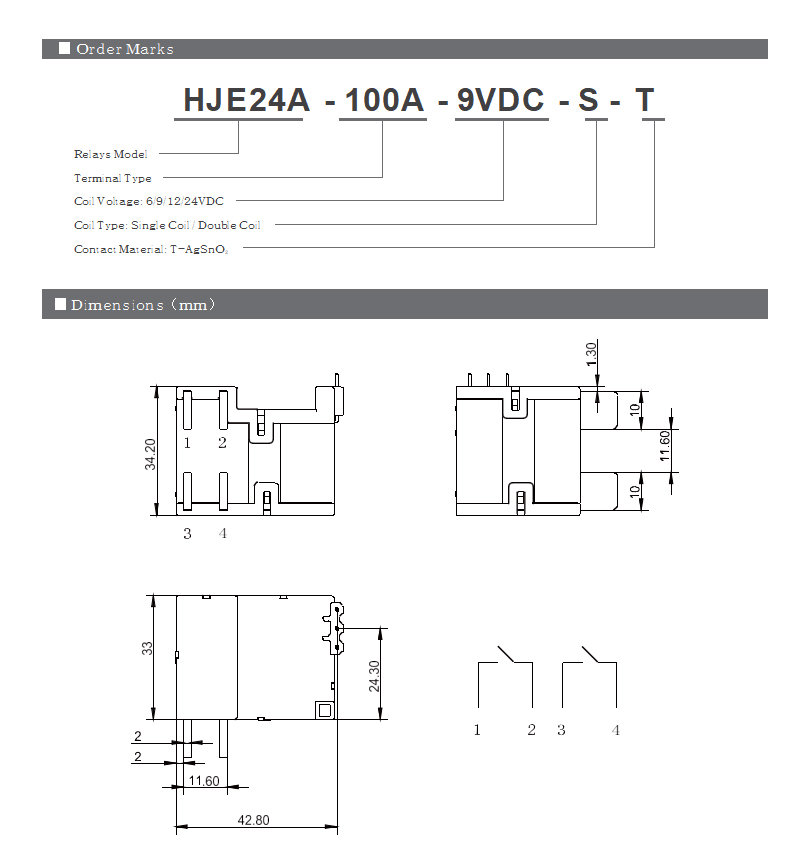

• Outlinedimensions (42.8×33×34.2)mm
• RoHScompliant

Application Notes

1、All relays are shipped in the “closed” position. It is possible that during transit or final assembly, the relay could change its state to the “open” position. Therefore, it is recommended that all relays be set to the desired state of the relay via a power supply.

2、In order to maintain an “open” or “closed” state of the relay, the coil voltage should reach the rated voltage. The pulse width should be 5 times the operating time to ensure a proper change of state. Do not energize both T1, T,2 and T3 at the same time on a dual coil, or energize the coil for longer than 1 minute (damage to the coil could incur).

3、Relays have polarity; if the user’s need is different fromthe information, please contact us.

4、The relay to the factory inspection and use should be handled to prevent damage to the factory for damaging the goods, shoud be strict distinction between the normal product and must not be used.
