HJE11C-90A Compliant with UC2 Single Phase Latching Relay

Core Advantages: Utilizes magnetic latching technology, consuming power only during operation, with near-zero standby power consumption, resulting in significant energy savings.

High Reliability: Supports 90A high-current loads, with arc-resistant contacts, long lifespan, and a mechanical lifespan exceeding 100,000 cycles, ensuring stable and reliable operation.

Standard Certification: Strictly complies with the UC2 international standard, ensuring product safety and global compatibility.

Main Applications: Widely used in smart meters, photovoltaic inverters, industrial automation control, and smart home energy-saving and intelligent control fields.

• 90Aswitching capability
• Veryminimal power consumption from the coil
• 4KVdielectrics strength coil to contact
• IEC-62055-31UC2 compliant

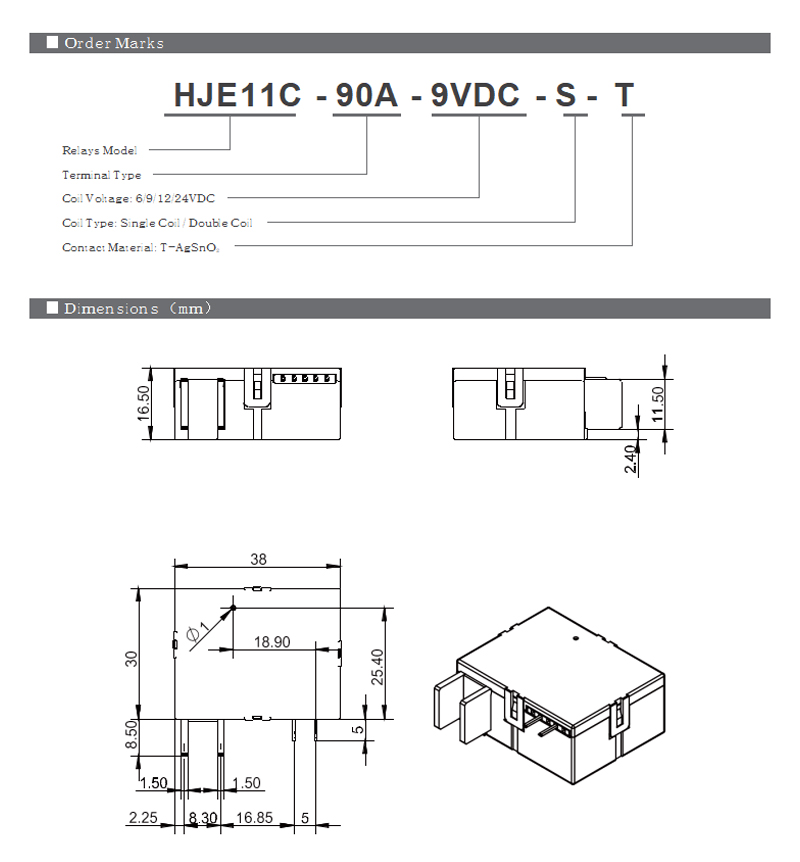

• Outlinedimensions(39×30×16.5)mm
• RoHS， CQC-compliant

 Application Notes

1、All relays are shipped in the “closed” position. It is possible that during transit or final assembly, the relay could change its state to the “open” position. Therefore, it is recommended that all relays be set to the desired state of the relay via a power supply.

2、In order to maintain an “open” or “closed” state of the relay, the coil voltage should reach the rated voltage. The pulse width should be 5 times the operating time to ensure a proper change of state. Do not energize both T1, T2, and T3 at the same time on a dual coil, or energize the coil for longer than 1 minute (damage to the coil could occur).

3、Relays have polarity; if the user’s need is different from the information, please contact us.

4、The relay to the factory inspection and use should be handled to prevent damage to the factory. For damaging the good,s shoud be strict distinction should be made between the normal product and those that must not be used.
