HJE23A-80A Compliant with UC2 Dual Channel Latching Relay

Integrated Design: One relay integrates two independent switches, enabling synchronous or time-sharing control, significantly simplifying circuit design and saving PCB space and system costs.

Core Energy Saving: Utilizing magnetic latching technology, power is consumed only during switching, with near-zero standby power consumption, making it an ideal choice for green energy-saving systems.

High Load Capacity: Each channel supports 80A high-current loads, with arc-resistant and long-life contacts ensuring stable and reliable switching between dual loads.

Standard Certification: Strictly compliant with UC2 international standards, ensuring product safety and global compatibility.

Main Applications: Widely used in smart meters, multi-channel charging piles, automatic transfer switches (ATS), and industrial automation control equipment.

• Two-phase two sets of contact with 80A switching capability
• Veryminimal power consumption from the coil
• Loadlead-out mode: 1 input 2 output, 3 input 4 output
• 4KVdielectrics strength coil to contact
• IEC-62055-31UC2 compliant

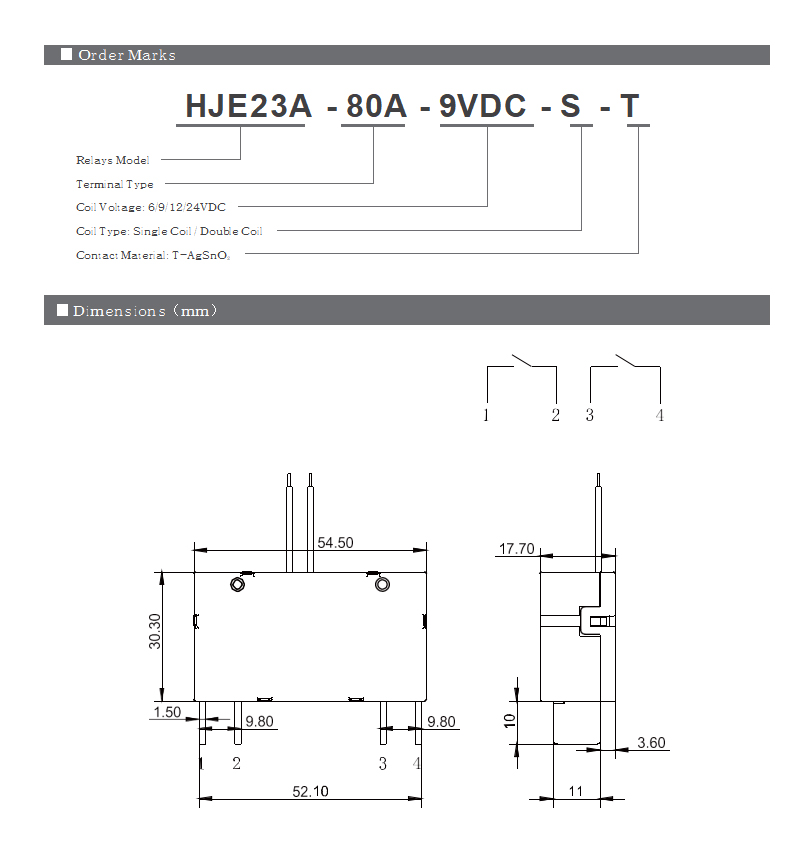

• Outlinedimensions (54.5×30.3×17.6)mm
• RoHScompliant

Application Notes

1、All relays are shipped in the “closed” position. It is possible that during transit or final assembly, the relay could change its state to the “open” position. Therefore, it is recommended that all relays be set to the desired state of the relay via a power supply.

2、In order to maintain an “open” or “closed” state of the relay, the coil voltage should reach the rated voltage. The pulse width should be 5 times the operating time to ensure a proper change of state. Do not energize both T1, T,2 and T3 at the same time on a dual coil, or energize the coil for longer than 1 minute (damage to the coil could incur).

3、Relays have polarity; if the user’s need is different fromthe information, please contact us.

4、The relay to the factory inspection and use should be handled to prevent damage to the factory for damaging the goods, shoud be strict distinction between the normal product and must not be used.
