HJE34A-80A Integrated Latching Relay with CT for 4P DIN Rail Meter

Why Choose It?
 Integrated Three-Phase Control: A single device enables synchronous on/off of three-phase lines, simplifying wiring and saving space.
 Compact Rail Mounting: The integrated structure adapts to standard rails, significantly reducing cabinet space and installation time.
 Safe Full-Pole Disconnection: The 4-pole fully isolated design ensures complete disconnection of all three phases, enhancing safety.
 80A High-Load Capacity: High-quality contact materials support stable load bearing, capable of handling inductive loads such as motors and pumps.

Typical Applications:
 Small Three-Phase Motor Control Cabinet
 Commercial and Industrial Three-Phase Equipment Distribution Box
 Photovoltaic Three-Phase Micro-Inverter Output Terminal
 Charging Pile Three-Phase Power Management Module

• Three-phase / Three sets of  contacts with 80A switching capability
• Appliedto three phase DIN rail meter for input at the top and output at the bottom
• Loadlead-out mode: 1 input 2 output, 3 input 4 output, 5 input 6 output
• 4KVdielectrics strength coil to contact
• IEC-62055-31UC2 compliant

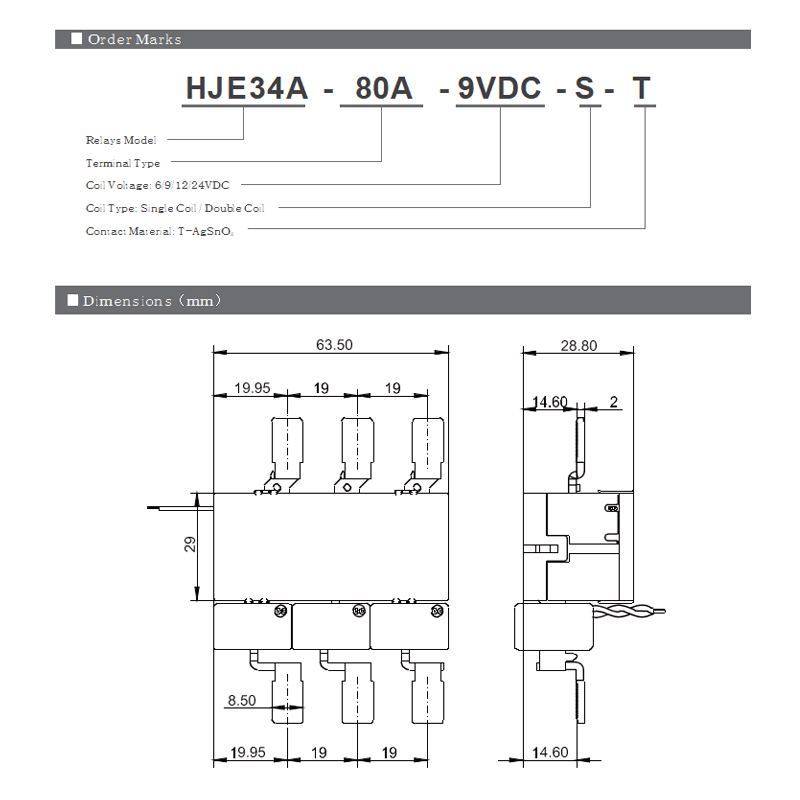

• Outlinedimensions (63.5×29×28.8)mm
• Optionalwith auxiliary switch
• RoHScompliant

Application Notes

1、All relays are shipped in the “closed” position. It is possible that during transit or final assembly,y the relay could change its state to the “open” position. Therefore, it is recommended that all relays be set to the desired state of the relay via a power supply.

2、In order to maintain an “open” or “closed” state of the relay, the coil voltage should reach the rated voltage. The pulse width should be 5 times the operating time to ensure a proper change of state. Do not energize both T1, T2, and T3 at the same time on a dual coil, or energize the coil for longer than 1 minute (damage to the coil could occur).

3、Relays have polarity; if the user’s need is different from the information, please contact us.

4、The relay to the factory inspection and use should be handled to prevent damage. To the factory for damaging the goods, there should be a strict distinction between the normal product and those that must not be used.
