HJE33A-80A State Grid Single Phase Latching Relay

Key Features: Employs advanced magnetic latching technology for high precision and rapid response; sensitively detects three-phase current and voltage anomalies; boasts low power consumption, long lifespan, and high stability; compact structure, easy installation, and adaptability to high temperature, high humidity, and electromagnetic interference environments.

Application Scenarios: Widely used in substations, distribution networks, and industrial electrical control systems for overload protection, short-circuit alarms, and other relay protection functions. It is a crucial device for ensuring the safe and stable operation of power systems.

• Three-phase / Three sets of contacts with 80A switching capability
• Appliedto three phase energy meter of State Grid
• Loadlead-out mode: 1 input 2 output, 3 input 4 output, 5 input 6 output
• 4KVdielectrics strength coil to contact
• IEC-62055-31UC2 compliant

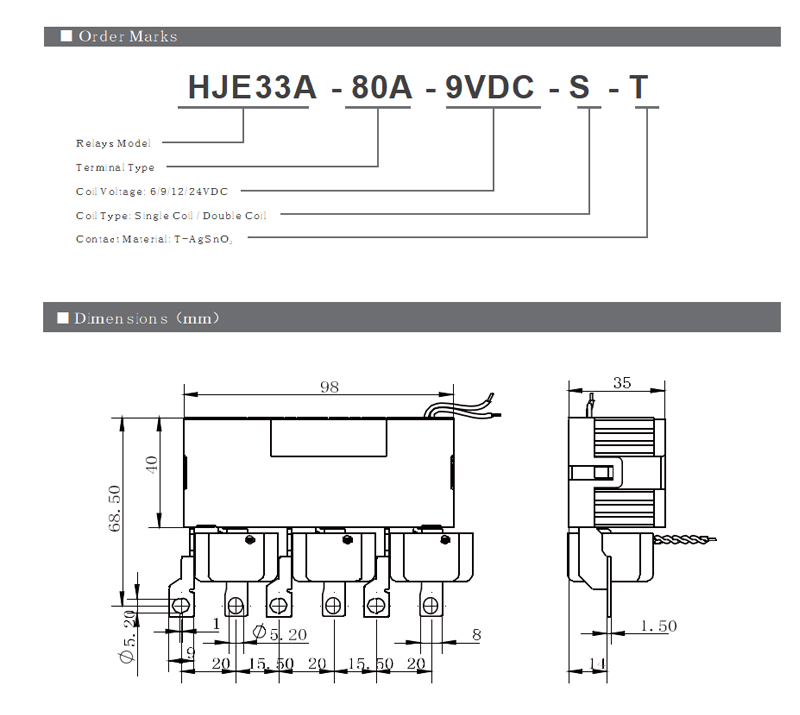

• Outlinedimensions(96×40×34)mm
• Optionalwith auxiliary switch
• RoHScompliant

Application Notes

1、All relays are shipped in the “closed” position. It is possible that during transit or final assembly, the relay could change its state to the “open ”position. Therefore, it is recommended that all relays be set to the desired state of the relay via a power supply.

2、In order to maintain an “open” or “closed” state of the relay, the coil voltage should reach the rated voltage. The pulse width should be 5 times the operating time to ensure a proper change of state. Do not energize both T1, T2, and T3 at the same time on a dual coil, or energize the coil for longer than 1 minute (damage to the coil could occur).

3、Relays have polarity; if the user’s need is different from the information, please contact us.

4、The relay to the factory inspection and use should be handled to prevent damage to the factory for damaging the goods, shoud be strict distinction between the normal product and must not be used.
