HJE11D-100A-250VAC Latching Relay

Product Highlights: "Locks" in the state, doesn't "burn" the coil: It only consumes power in the blink of an eye during switching, then magnetically "locks" in the state, resulting in near-zero power consumption. This eliminates continuous overheating in your equipment, allowing for cooler operation and a longer lifespan.

100A Capacity, Silent Guardian: Possessing a powerful 100A switching capacity, it operates stably and silently. It is a reliable executor for critical tasks such as time-of-use pricing and remote switching, ensuring precise operation with every action.

Core Application Scenarios: Perfectly integrated into core nodes requiring long-term standby and precise control, such as smart meters, smart circuit breakers, and energy management systems, it forms the cornerstone of building the next generation of efficient and energy-saving power grids!

• 100Aswitching capability
• Veryminimal power consumption from the coil
• 4KVdielectrics strength coil to contact
• IEC-62055-31UC2 compliant

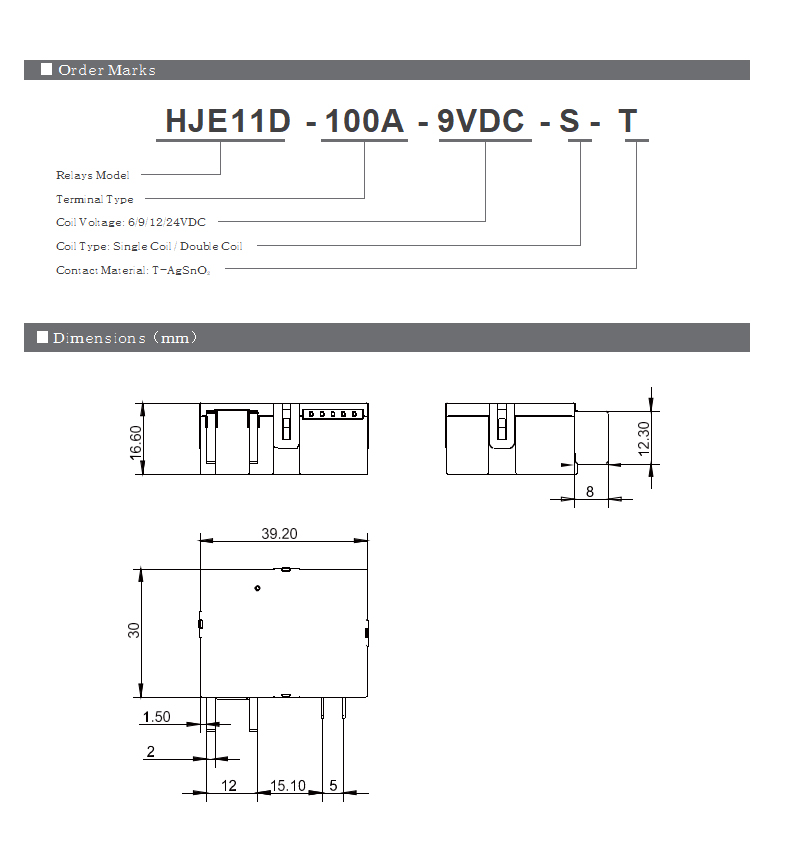

• Outlinedimensions(39.2×30×16.5)mm
• RoHS， CQC-compliant

 Application Notes

1、All relays are shipped in the “closed” position. It is possible that during transit or final assembly, the relay could change its state to the “open” position. Therefore, it is recommended that all relays be set to the desired state of the relay via a power supply.

2、In order to maintain an “open” or “closed” state of the relay, the coil voltage should reach the rated voltage. The pulse width should be 5 times the operating time to ensure a proper change of state. Do not energize both T1, T2， and T3 at the same time on a dual coil, or energize the coil for longer than 1 minute (damage to the coil could occur).

3、Relays have polarity; if the user’s need is different from the information, please contact us.

4、The relay to the factory inspection and use should be handled to prevent damage to the factory. For damaging the goods shoud be a strict distinction between the normal product and it must not be used.
